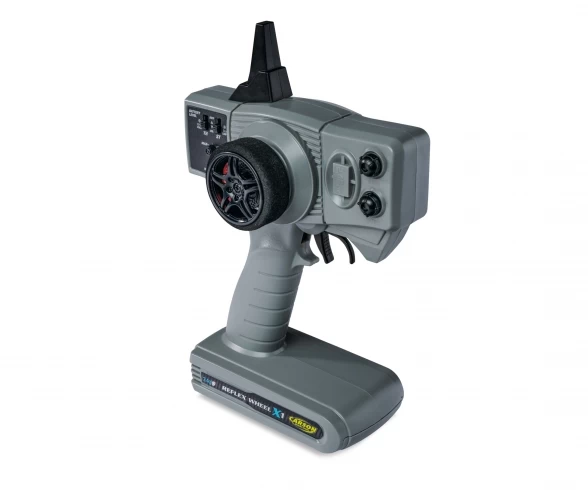

Carson Reflex Wheel X1 2.4GHz Gray

Article number: 500500105
Product: Reflex Wheel X1 2.4GHz grey

The Reflex Wheel X1 remote control has two fully proportional channels.
Both channels are equipped with a servo reverse, for example to reverse
the vehicle’s direction of travel and thus make control easier. In
addition, throttle and steering trimming is possible, moreover a dual rate function is available.

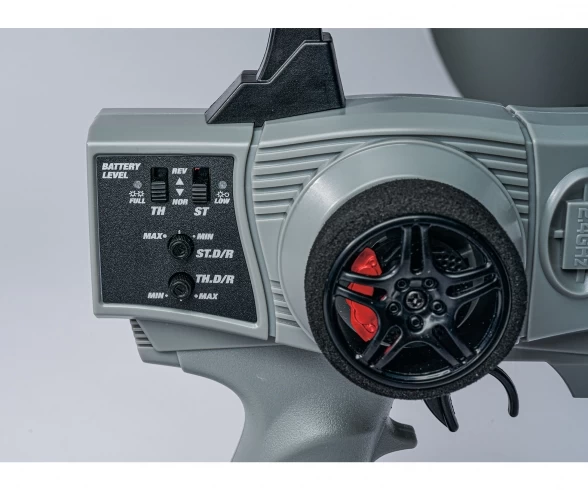

The CARSON Reflex Wheel X1 is compatible with TAMIYA products. The battery status is transmitted via an LED display.

Required accessories:
N° 500609042 – 1,2V/2100mAh Mignon/AA Battery Set (4)

Included:

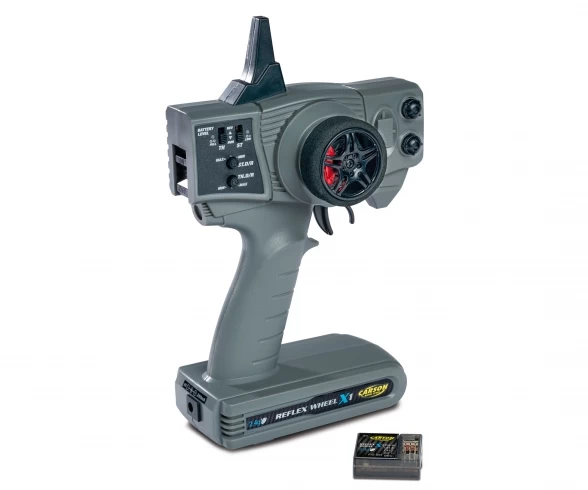

2-channel 2.4 GHz transmitter, 4-channel 2.4 GHz receiver and handbook

Recommended Accessories
HR6 Battery-Set NiMh AA Nr. 500609042

WARNING!
Not for children under 14 years. The packaging has to be kept since it
contains important informations. Illustration may vary from actual
product in the box. TAMIYA-CARSON reserves the rights to change, update or replace any component at any time



Warning! Not suitable for children under 14 years.

Features:
1. Two infinitely variable fully proportional channels
2. Servo reverse for both channels (reversal of direction of travel)
3. Trimming function for gas and steering
4. Dual rate for both channels (travel limiting of the servos)
5. Programmable failsafe
6. Tamiya kit compatible

Technical data:
• Operating voltage of the transmitter 4.8 – 6V
• Two infinitely variable fully proportional channels
• Servo reverse for both channels (reversal of direction of travel)
• Trimming function for gas and steering
• Dual rate for both channels (travel limiting of the servos)
• Power supply of the receiver up to 11V (without a BEC)
• Built-in failsafe
• Uni connector system J/R
• Charging socket (positive pole inside)
• Battery status display via LED
• 4-channel mini-receiver 36x25x15 mm
