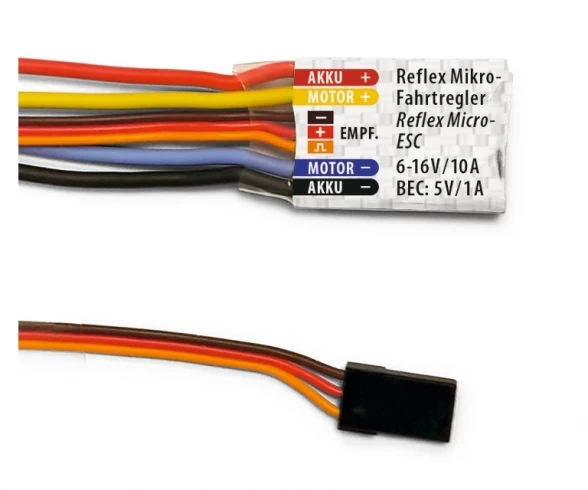

Carson Reflex Micro-ESC 10A/BEC

Article number: 500503064
Product: Reflex Micro-ESC 10A/BEC

The Reflex-Micro ESC is suitable for model making applications where
very little amount of space is available. It is short-circuit-proof, has
temperature protection and a fail-safe system for engine shutdown.

Technical details:

Input voltage: 6 – 16 V/DC
Maximum current: 10A
BEC: 5.0 V/DC = 0.5 A (max 1 A)
PWM clock frequency: 20 kc
Failsafe (engine stop)
Temperature protection
Short-circuit proof
Dimensions: 26 x 19 x 6 mm
Weight: 17 g
Servo connection: UNI connector system
