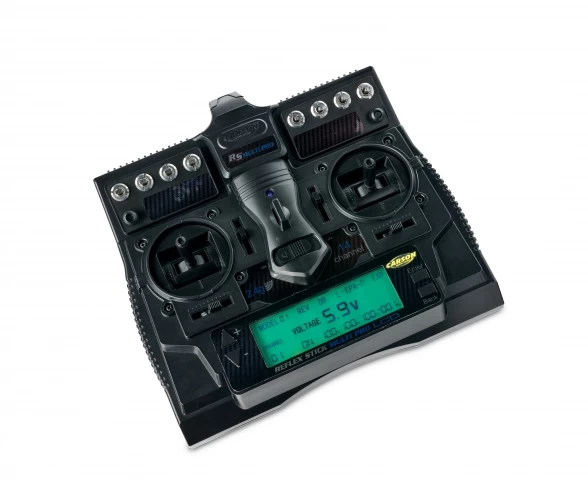

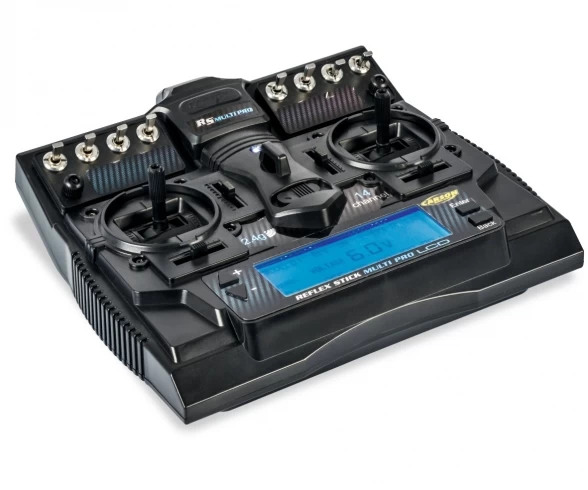

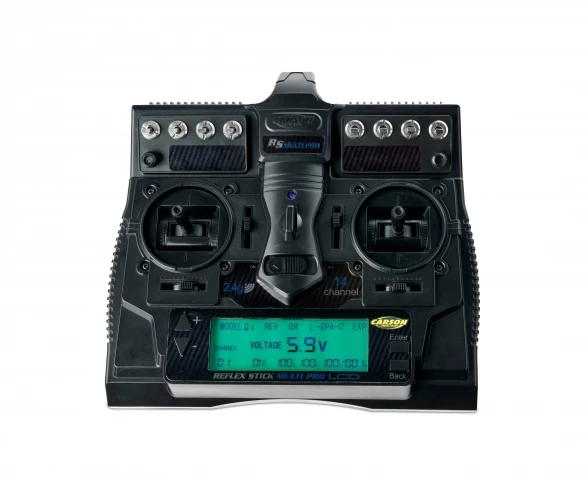

Carson FS Reflex Stick Multi Pro LCD 2.4G 14CH

Article number: 500501004
Product: FS Reflex Stick Multi Pro LCD 2.4G 14CH

Reflex Stick Multi Pro LCD – Professional, modern and technically
highquality, 14 channel remote control system with 15 model memories for
universal use in many RC vehicles and vessels. 14 channels can be

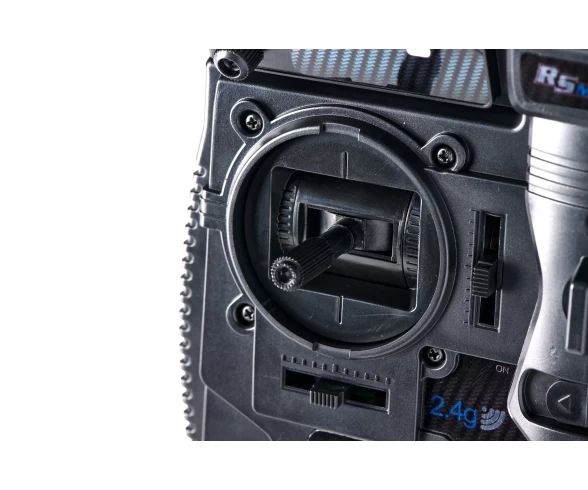

controlled independently by means of 2 control sticks and 10 switches
(4x pushbutton / 4x step switch / 2x rotary potentiometer) for example
light/sound, horn, winch, support legs, water pump and water monitor.
The REFLEX STICK Multi Pro 14 Channel LCD System is fully compatible with the MFC 01/03 and DMD units from TAMIYA.

Necessary Accessories:
AA mignon set, N° 500609043

Recommended Accessories:
N° 500503060 Reflex 6/14Ch Switch 2 (2×2.5A, max. 16V)
N° 500503061 Reflex 6/14Ch Switch 4 (4×2.5A, max. 16V)
N° 500503062 Reflex Switch 2/4 power distribution
N° 500501544 Receiver (for use with other vehicles)
N° 500609042 AA battery set

Included:

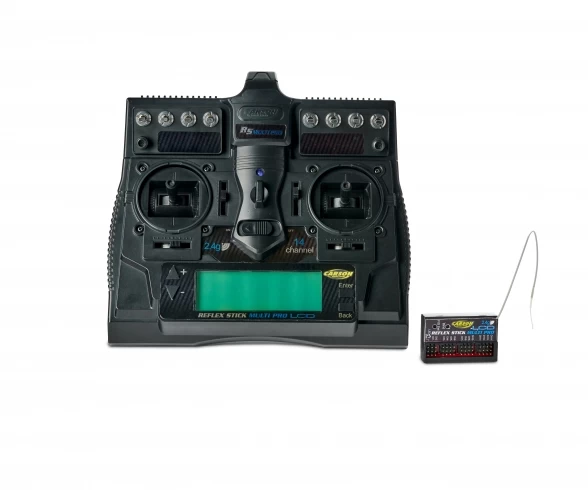

14 channel 2.4 GHz transmitter, 14channel 2.4 GHz receiver and multilingual handbook.

Safety note:
Not for children under 14 years. The packaging has to be kept since it
contains important informations. Illustration may vary from actual
product in the box. TAMIYA-CARSON reserves the rights to change, update or replace any component at any time.

Feaures:
1. 14 controllable channels
2. 15 model memory
3. 2.4G Servo reverse (reverses the direction of travel) and trim
function for channels
4. 100% compatible with TAMIYA MFC 01/03 and DMD unit

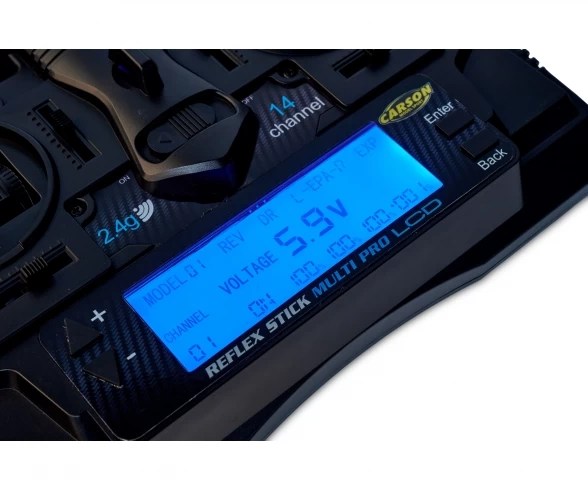

5. Blue backlit LCD display
6. Includes charging socket

Technical data:
• Operating voltage transmitter 4.8 – 6 V (4 AA batteries)
• 2.4G FHSS-System (Frequenz Hopping Spread Spectrum)
• 2.4G servo reverse (reversal of running direction) and trimming function for channels

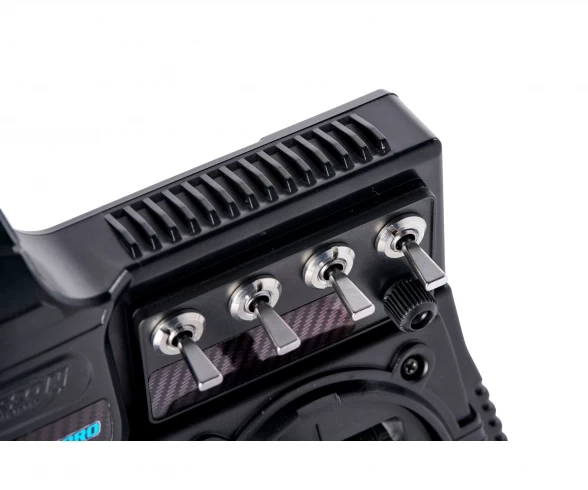

• 4x button ON/OFF/ON, 4x switch ON/OFF/ON, 2x rotary potentiometer
• power supply to the receiver 4.8 – 6 V
• plug system Graupner-J/R
• Dual Rate for steering (path limitation of the servos)
• EPA (servo travel limiting)
• EXP (exponential)
• failsafe function
