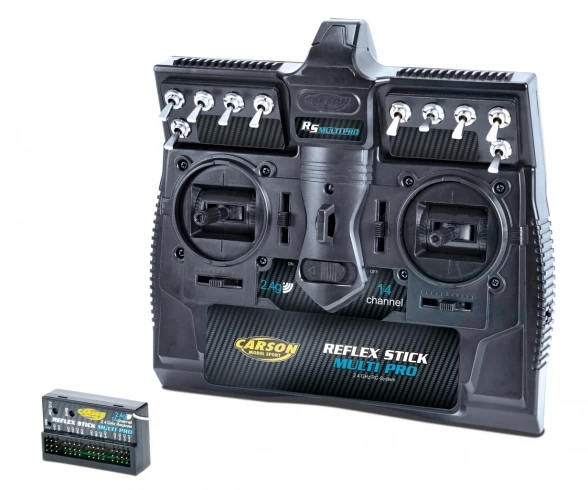

Carson FS Reflex Stick Multi Pro 2.4G 14CH

Article number: 500501003
Product: Reflex Stick Multi Pro 2.4 GHz 14 channel

The 14-channel Reflex Stick MULTI PRO from Carson Model Sport is a value
for money but fully equipped and technically sophisticated 14 channel
remote control system for universal use in lots of RC vehicles and
boats. 14 channels can be independently controlled via 4 control and 10
switching channels (4x buttons / 6x switches). The REFLEXSTICK 14
Channel System is also fully compatible with all MFC and DMD units from TAMIYA, as the trim is controlled by sliders.

Recommended accessories:
Receiver 14 channel N° 500501540
AA battery set N° 500609042
Reflex 6/14Ch Switch 2 (2×2.5A, max. 16V) N° 500503060
Reflex 6/14Ch Switch 4 (4×2.5A, max. 16V) N° 500503061
Reflex Switch 2/4 power distr. N° 500503062

Required accessories:
AA mignon set N° 500609043

Included:
14-channel remote control, 14-channel receiver and manual

Safety note:
Not for children under 14 years. The packaging has to be kept since it
contains important informations. Illustration may vary from actual
product in the box. TAMIYA-CARSON reserves the rights to change, update or replace any component at any time

Features:
1. Interference-free 14-channel 2.4 GHz remote control
2. Four gradually adjustable, fully-proportional channels
3. Servo reverse (reverses the direction of travel) and trim
function for channels 1-4
4. 100% compatible with TAMIYA MFC 01/02/03 and DMD unit
5. 5x ON/OFF/ON button, 5x ON/OFF/ON switch
6. Includes charging socket

Technical data:
• 4.8 – 6 V remote control operating voltage (4 AA batteries)
• Four gradually adjustable, fully-proportional channels
• 2.4G FHSS system (Frequency Hopping Spread Spectrum)
• Servo reverse (reverses the direction of travel) and trim function for channels 1-4
• 5x ON/OFF/ON button, 5x ON/OFF/ON switch
• 4.8 – 6 V power supply for the receiver
• Graupner J/R plug system
• Charging socket (positive pole inside)
• Battery status display via LED
